Development preview. Product profiles, specifications, recommendations and options are provisional. All suitability and availability must be confirmed by Littlethorpe.
Cantilever
Cropston
A smaller footprint. A clearer view.
A compact cantilever shelter for narrow pavements and sites where a larger shelter could obstruct traffic visibility.

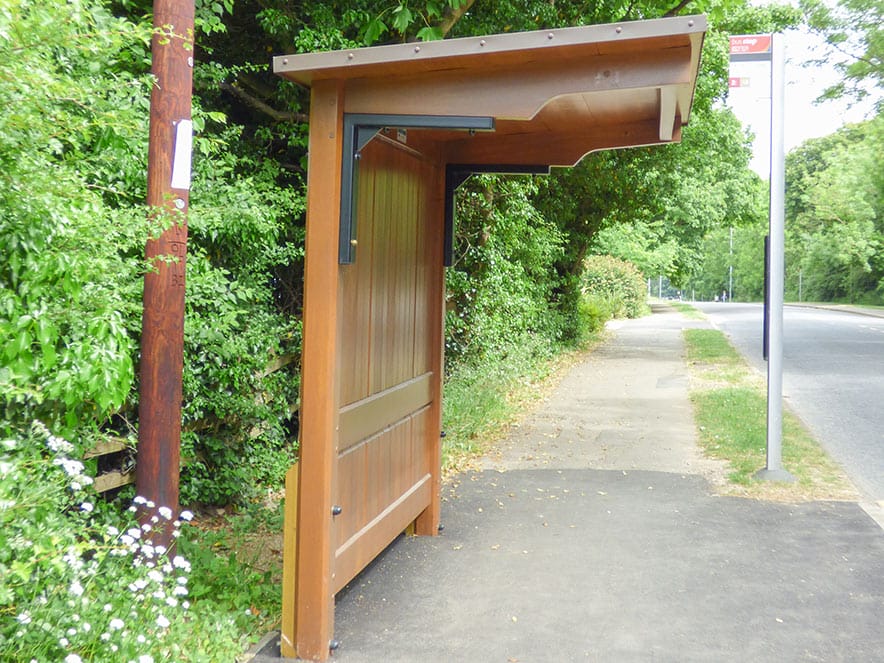

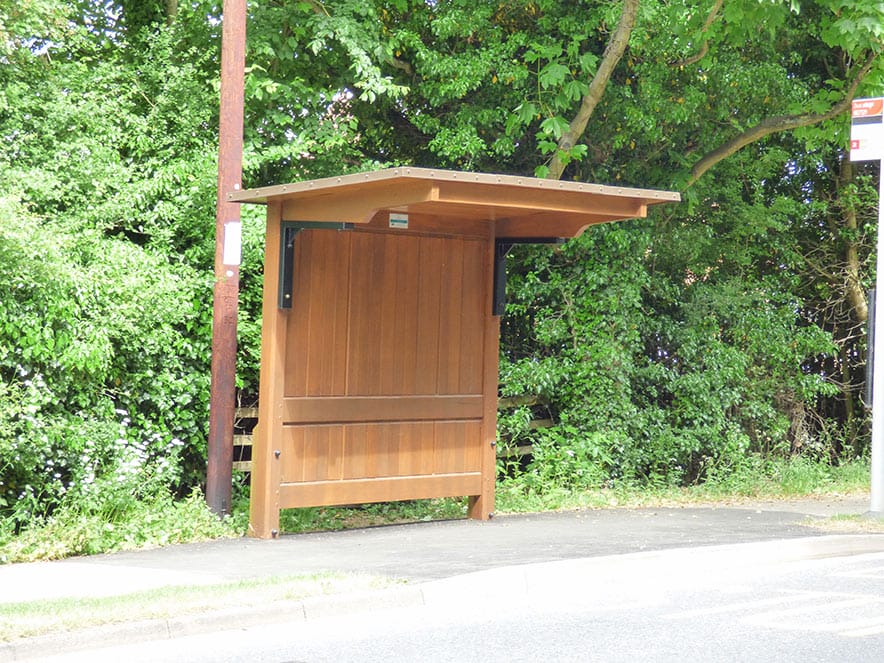

Product image from the supplied Littlethorpe brochure
At a glance
- Type
- Cantilever
- Post-to-post length
- 2.48 m
- Post depth
- 0.2 m
- Roof size (L × D)
- 3.1 m × 1.6 m
Why Cropston
Room for shelter, space for visibility.
Designed for restricted roadside sites, including driveways and junctions. The boarded design limits exposure and maintenance; interchangeable panels, adaptable dimensions and alternative roofs let the team respond to your location.
- Shallow posts for restricted pavements.
- Considered visibility near driveways and junctions.
- Dimensions and panels adaptable to your site.
Cropston in detail
Available product photography and views.
Specifications
| Type | Cantilever |
|---|---|
| Post-to-post length | 2.48 m |
| Post depth | 0.2 m |
| Roof size (L × D) | 3.1 m × 1.6 m |
| Height (supplied brochure) | 2.45 m — current height to be confirmed |
| Rear styles (supplied brochure) | Rear Style 1 / Rear Style 2 — current availability to be confirmed |
| Roof option (supplied brochure) | Half roof, 1 m depth; alternative roof styles and materials by discussion |
| Glazing / boarding | Solid boarding, 6.4 mm laminated glass, plastic glazing, 15 mm toughened glass, perforated steel |
| Installation orientation | Reverse installation available, with rear wall facing the road |
| Custom dimensions | Dimensions can be adapted to the location; site fit requires confirmation |
| Materials | Sustainably sourced FSC®-certified hardwood |
| Guarantee | Five-year cover for specified criminal damage, subject to full terms. One-year glass-only cover for 15 mm toughened glass; exclusions apply. |
Configure your Cropston
Choose your preferences or ask for advice. We’ll confirm the final specification, availability and compatibility with you.
Technical information & downloads
Dimensions & product literature
Supplied brochure elevations. The ground-plan PDF is available from Littlethorpe on request; no verified file has been supplied.
Materials & optional extras
Current range-wide choices; final availability and compatibility confirmed by Littlethorpe.
Delivery, care & guarantees
Delivered assembled by crane lorry. The hardwood structure has an expected life beyond 50 years with proper maintenance, not a lifespan guarantee. Roof coverings and glazing may need replacement. Criminal-damage guarantees require a crime number and exclude delivery and installation costs; read the full terms.
Five-year cover for specified criminal damage, subject to full terms. One-year glass-only cover for 15 mm toughened glass; exclusions apply.
Hand built in Leicester
FSC-certified hardwood. Traditional joinery.
Ask for our FSC®-certified products.
FSC-certified hardwood
Traditional joinery
